Power Interface Kit for Stable Voltage During BUDS Diagnostics and ECU Updates

The BRP Power Interface Kit is an advanced diagnostic accessory developed to ensure stable voltage supply during ECU programming and diagnostic procedures performed with BUDS or BUDS2 software.

Originally, BRP introduced the T-Harness cable to provide external power to electronic modules during diagnostics.
However, with the of modern snowmobile platforms such as 800 E-TEC engines, the earlier solution could lead to overheating or short-circuit risks, potentially causing ECM damage.

The Power Interface Kit represents an improved and safer generation of diagnostic power supply equipment, specifically designed to eliminate voltage instability during software flashing and extended diagnostic sessions.

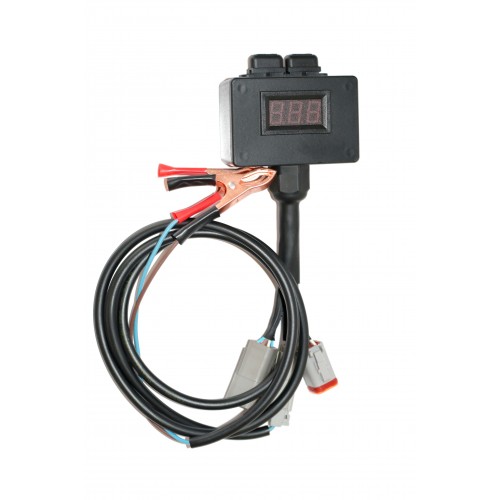

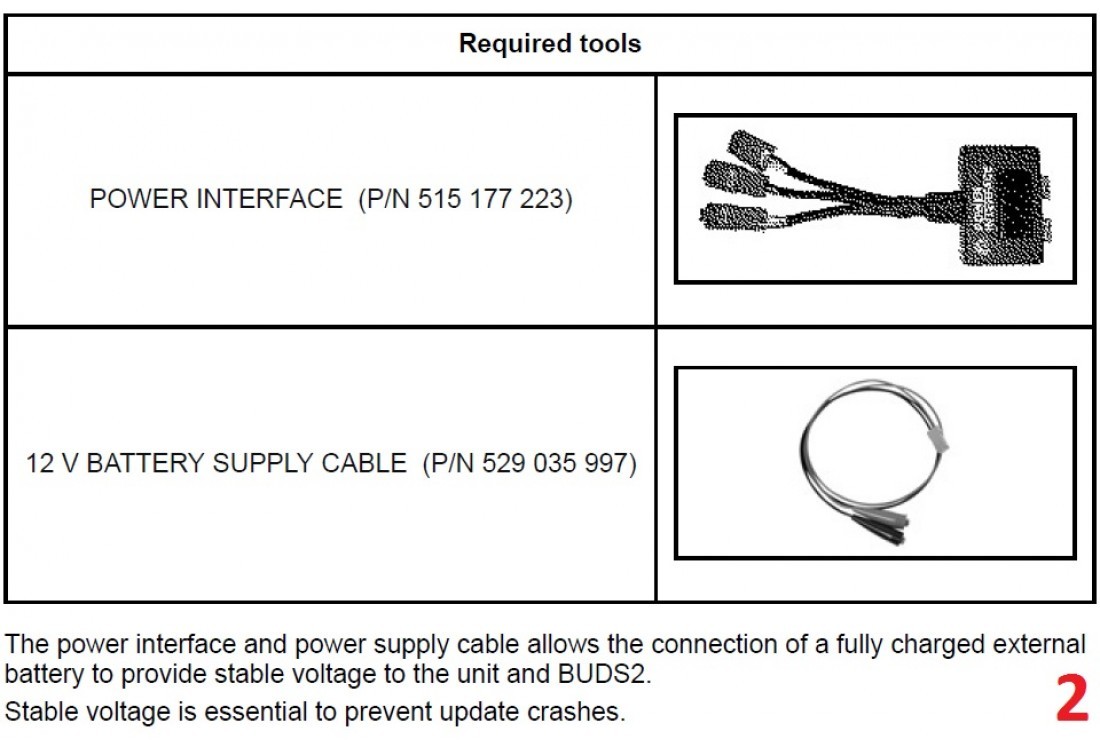

The kit includes:

• Power Interface Module (BRP p/n 515177223)

• External 12-Volt Battery Supply Cable (BRP p/n 529035997)

This system allows connection of a fully charged external battery to maintain constant voltage levels required for safe ECU firmware updates and module communication.

Stable power supply is critical during:

• ECU firmware flashing

• Software recovery procedures

• Long diagnostic sessions

• Module replacement and configuration

• Fleet service operations

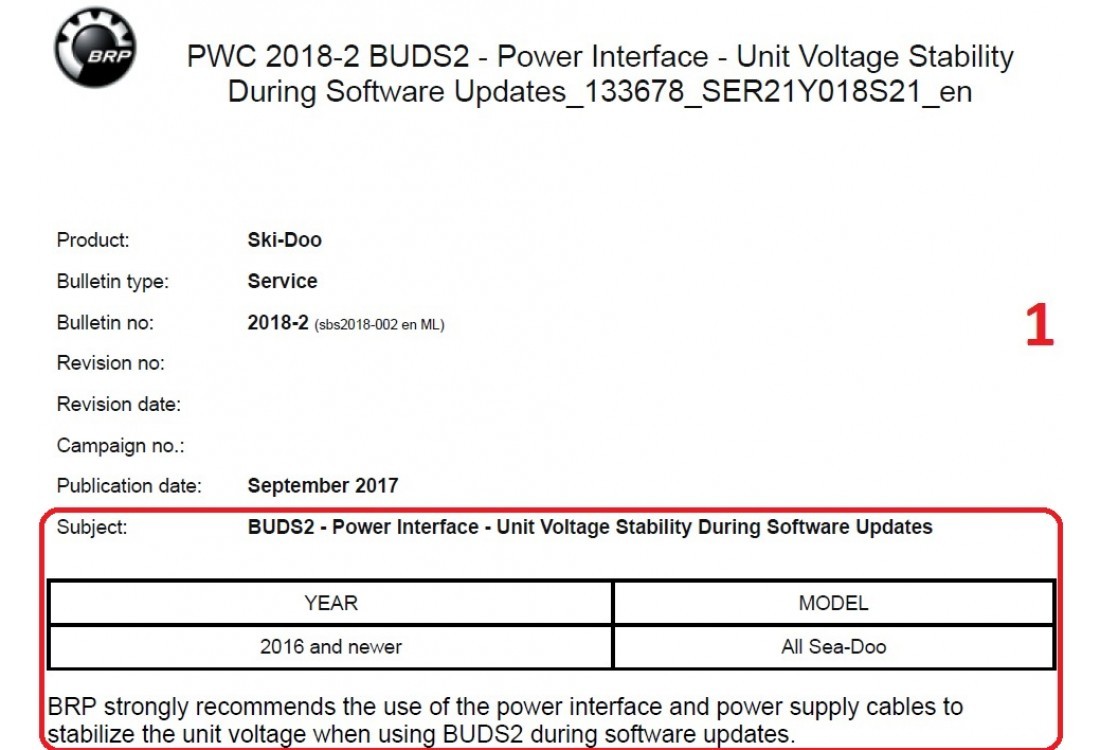

According to official BRP technical bulletins, the use of a dedicated power interface is strongly recommended when performing software updates on modern Sea-Doo vehicles and other CAN-based electronic systems.

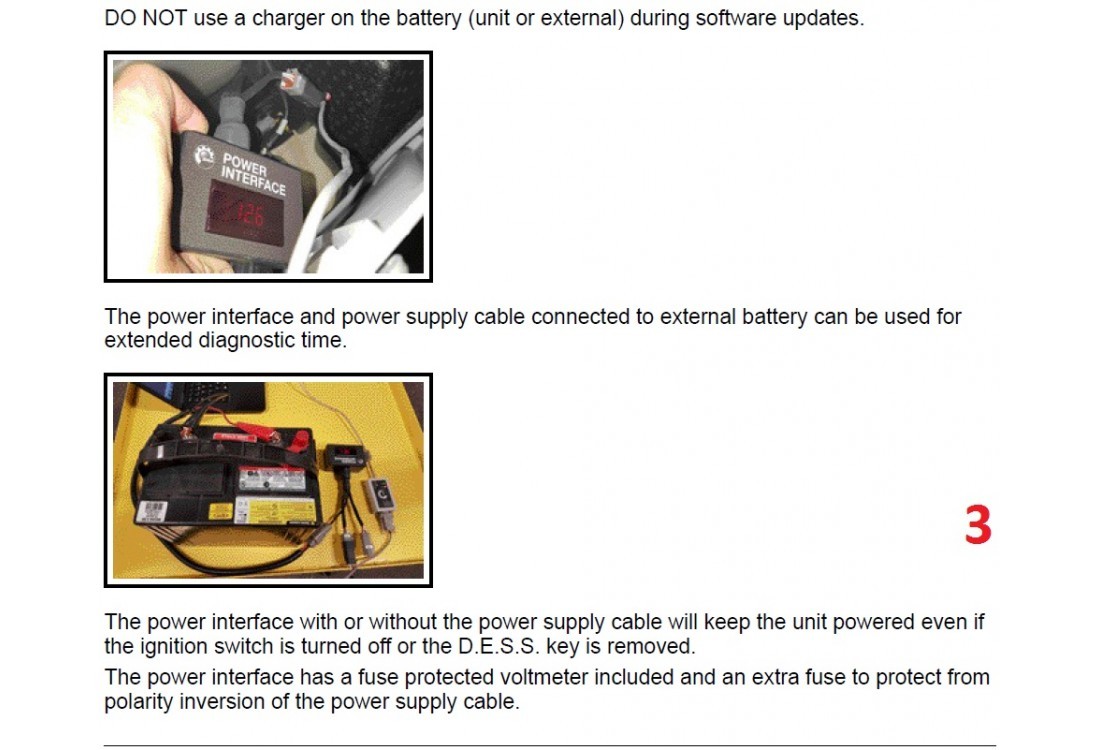

The integrated fuse-protected voltmeter and polarity protection circuit enhance operational safety and reduce the risk of electrical damage during service.

Another key advantage is the ability to maintain module power even when the ignition is switched off or the DESS key is removed, allowing uninterrupted diagnostic workflows.

The exact requirement for using the Power Interface Kit can be verified through the BUDS compatibility chart, depending on vehicle platform and model year.

✅ Important Usage Notes Block

⚠ Always use a fully charged external battery during ECU programming
⚠ Do NOT use battery chargers during software updates
⚠ Voltage instability may cause incomplete flashing or module failure
⚠ Recommended for Sea-Doo models 2016 and newer during BUDS2 updates

✅ Software & License Compatibility Section

This diagnostic accessory operates together with BRP B.U.D.S diagnostic software and requires MPI-2 or MPI-3 communication interfaces.

Supported license types include:

• Dealer Ski-Doo

• Dealer Sea-Doo (PWC & Sport Boats)

• Dealer Roadster

• Dealer ATV / SSV

• All Dealers License

• Megatech / Mechatronic Engineering License

Megatech provides advanced functions such as:

• ECU recovery after failed updates

• Deep electronic configuration

• Clearing module history

• Professional tuning operations

Trial licenses are available only for MPI-2 / MPI-3 hardware and supported BUDS software versions.

✅ Key Takeaways

✅ Stabilizes voltage during ECU software flashing
✅ Prevents update crashes and module damage
✅ Replaces outdated T-Harness diagnostic power solution
✅ Essential tool for modern BRP electronic platforms
✅ Recommended for professional workshops and tuners
