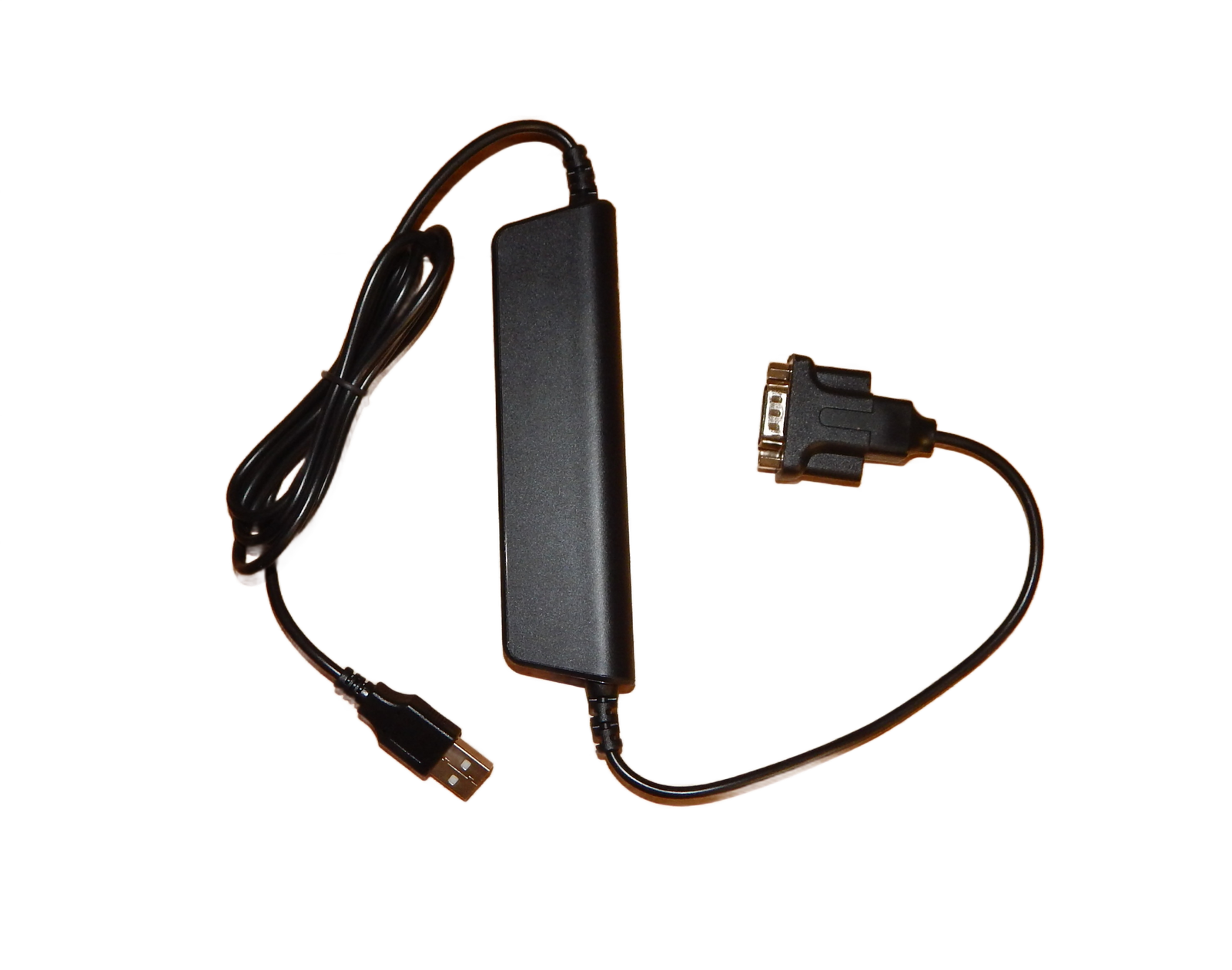

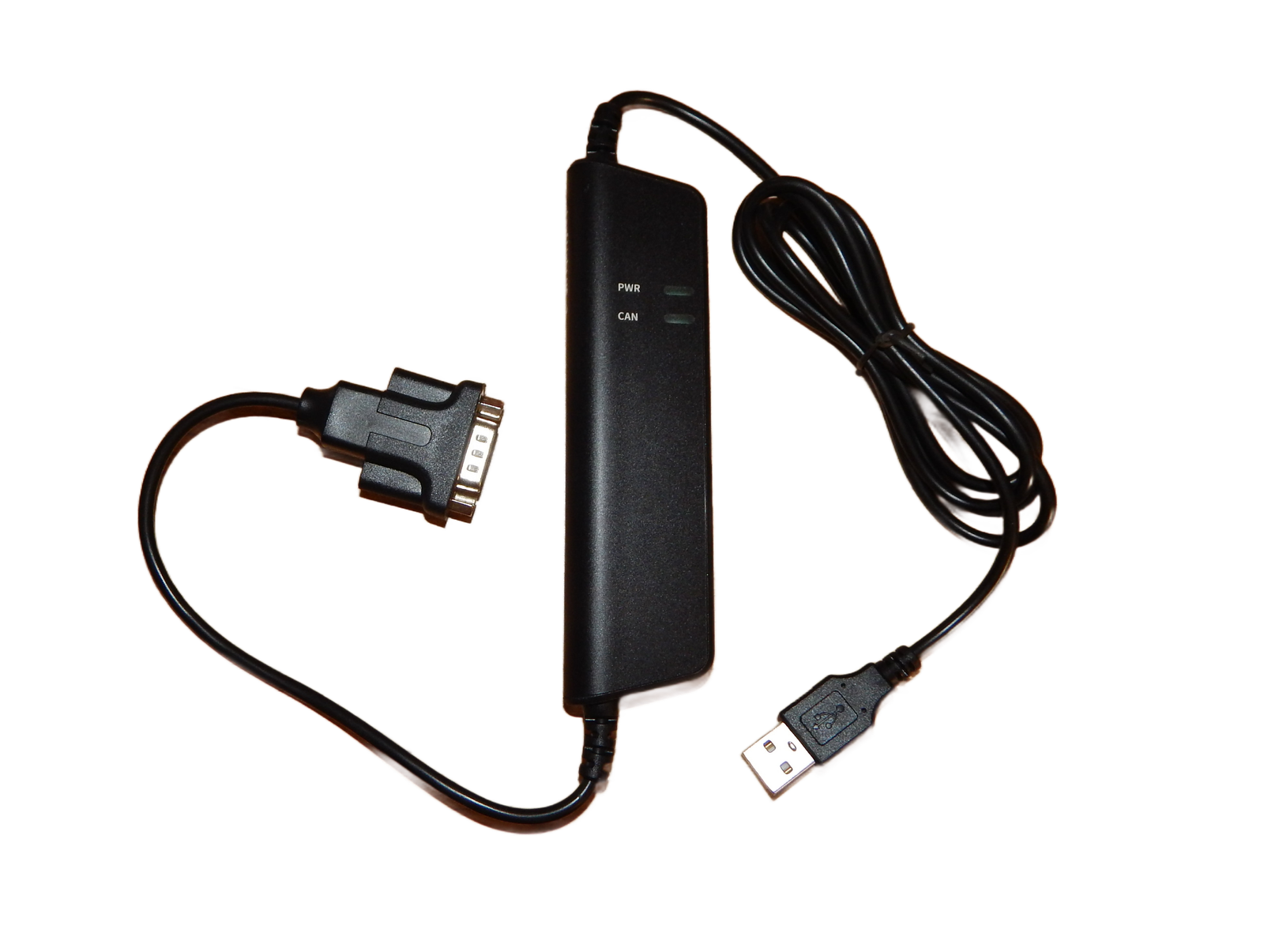

Kvaser Leaf Light HS V2 CAN Interface – BUDS3 Compatible Diagnostic Adapter

CAN Interface Cable Kvaser Leaf Light HS V2 (China Version) – Compatible with BUDS3

The Kvaser Leaf Light HS V2 CAN Interface is a reliable and cost-effective USB-to-CAN adapter designed to provide stable communication between a PC and the CAN-bus systems used in BRP vehicles.

This interface is fully compatible with BUDS3 diagnostic software, making it a practical solution for diagnostics, service procedures, ECU communication, and module programming on Sea-Doo, Ski-Doo, Can-Am and other BRP platforms.

This device represents an excellent affordable alternative to more expensive professional CAN interfaces required for BUDS3 operation, while still delivering high-speed data transfer and stable performance.

It is an ideal choice for:

• independent repair workshops
• ECU tuning specialists
• BRP vehicle owners
• service engineers and diagnostic technicians
• dealers needing an additional diagnostic interface

Key Features

✅ BUDS3 Software Compatibility
Supports diagnostic communication and service operations using BRP BUDS3 software.

✅ Cost-Effective Alternative to Premium Interfaces
Allows performing most diagnostic and service tasks without investing in higher-priced CAN hardware solutions.

✅ High-Speed CAN Communication
Supports CAN High-Speed communication up to 1 Mbit/s, compliant with ISO 11898-2 standard.

✅ High Timestamp Accuracy
CAN message transmission and reception with 100 microsecond timestamp precision, essential for stable ECU interaction.

✅ High Performance Data Processing
Capable of handling up to 8000 CAN messages per second (transmit and receive).

✅ Electrical Isolation Protection
Integrated isolation helps protect both the interface and the connected computer from voltage spikes and electrical disturbances.

✅ Low Power Consumption
Typical current draw of around 90 mA, making it safe for laptop-based diagnostic setups.

✅ Local Buffering and Pre-Processing
Reduces CPU load on the host computer and improves communication stability during intensive CAN traffic.

✅ Support for CAN 2.0A and CAN 2.0B
Compatible with both 11-bit and 29-bit CAN identifiers, required for modern BRP systems.

Technical Specifications

• Interface type: USB to CAN (single channel)
• CAN bitrate range: 40 – 1000 kbit/s
• Message processing capability: up to 8000 messages per second
• Timestamp resolution: 100 μs
• Operating temperature range: –20°C to +70°C
• Electrical isolation: integrated
• Device class: High-Speed USB CAN Adapter

Typical Applications

✔ BRP diagnostics using BUDS3 software
✔ ECU communication and service procedures
✔ CAN-network diagnostics and testing
✔ Engineering and development tasks
✔ Workshop and dealership diagnostic operations

Important Notice

⚠ This is a budget-friendly CAN interface manufactured in China, offering strong functionality and reliable performance for diagnostic use. It is intended as a practical and economical alternative to higher-priced professional CAN adapters.

Why Choose This Interface

⭐ Fully compatible with BUDS3
⭐ Affordable alternative to expensive CAN diagnostic interfaces
⭐ Stable high-speed communication
⭐ Suitable for professional BRP diagnostics
⭐ Excellent price-to-performance ratio

Important!

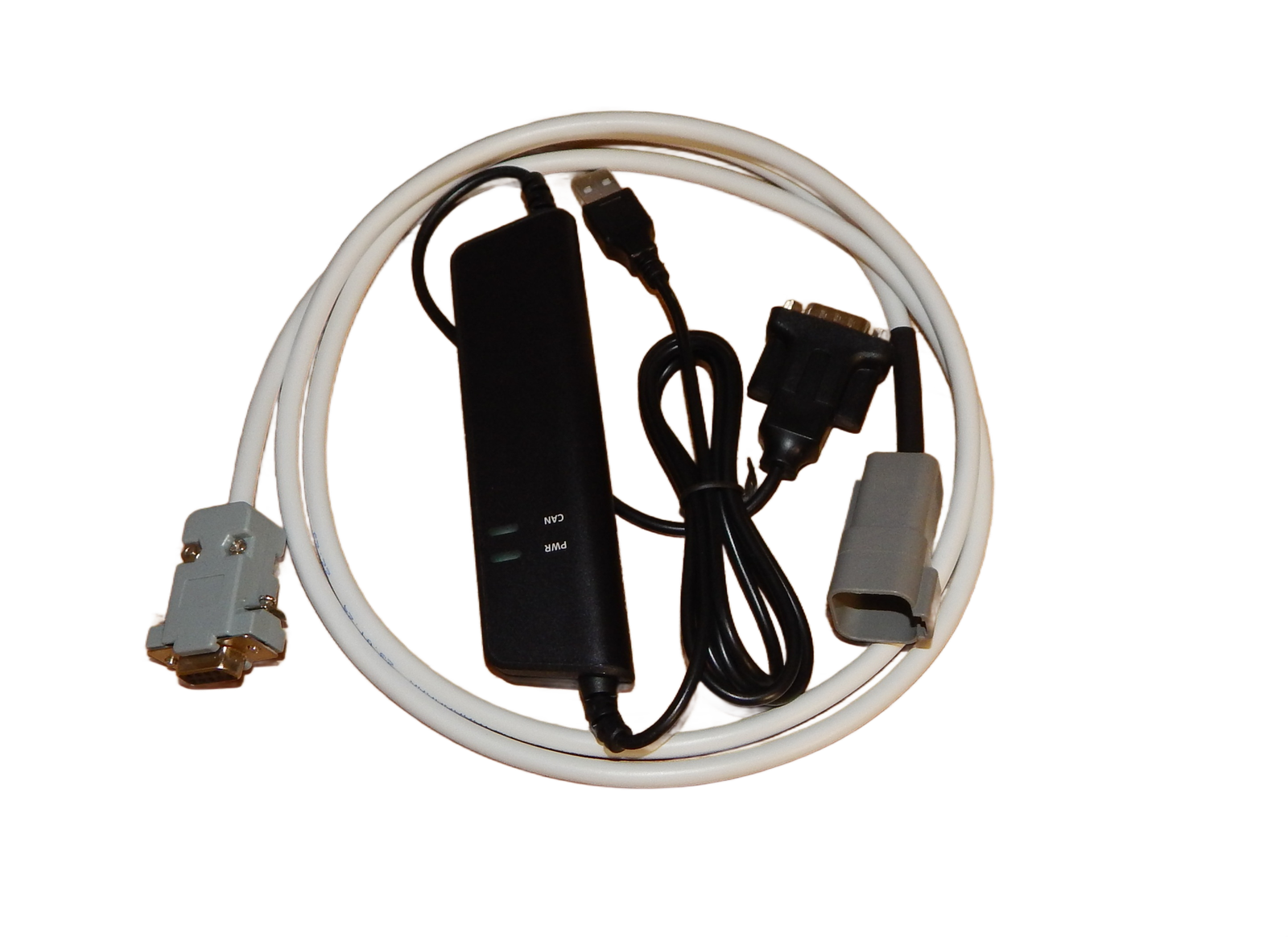

To use the BUDS3 program, you will also need a diagnostic cable (BRP p/n 710000851), the same one used with MPI for BUDS1 and BUDS2.

System Requirements

To operate the BUDS3 diagnostic software, your computer and diagnostic setup must meet the following requirements:

Operating System

• Windows 10 or Windows 11 PC

Diagnostic Hardware

• Kvaser CAN diagnostic interface
• BRP diagnostic cable p/n 710000851 (Option)
  (the same cable used with MPI interfaces for BUDS and BUDS2 systems)

Software & Licensing

• Active BUDS3 license
• Installed BUDS3 software

Computer Specifications

Processor

• Minimum: 64-bit quad-core processor

Storage

• Minimum: 35 GB available HDD space
• Recommended: 35 GB available SSD space

Memory (RAM)

• Minimum: 4 GB
• Recommended: 8 GB

Display

• Minimum resolution: 1366 × 768
• Recommended resolution: 1920 × 1080
• Screen scaling must be set to 100% for correct software interface display
